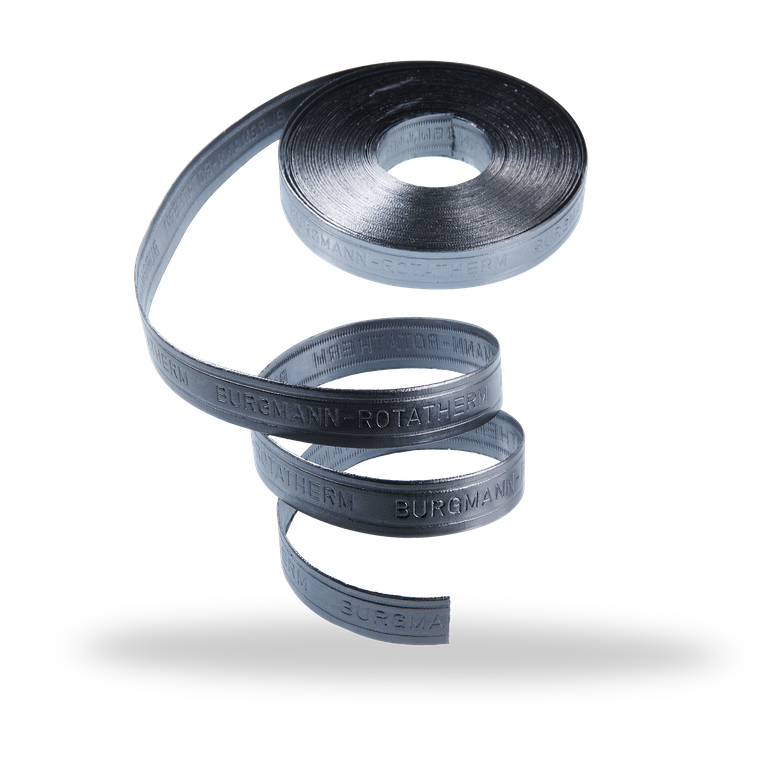

Rotatherm Tape 0902

Rotatherm Tape 0902

Rotatherm Tape 0902

Features

Rotatherm tape 0902 is nuclear grade pure graphite tape (purity ≥ 99.85 %). It is suitable for sealing or packing valve spindles during servicing. They are used to quickly and easily create working packing rings inside the valve.

Advantages

  • Do not harden
  • Long service life
  • Uncomplicated installation and removal

Operating range

Temperature
  • Continuous operation:
    t = -200 °C … +500 °C

Chemical resistance:
pH = 0 ... 14
Resistant to almost all organic and inorganic acids, alkalis, oils and solvents.

Standards and approvals

  • BAM (upon request)

Variants

0902/10 (10 mm wide)
0902/15 (15 mm wide)
0902/20 (20 mm wide)
0902/25 (25 mm wide)
0903: knurled, self-adhesive

Forms of supply

  • Sold by length on rolls in boxes in 12 and 15 m lengths
    • Standard dimensions:
      (Width x Height)
      10 x 0.5 mm
      15 x 0.5 mm
      20 x 0.5 mm
      25 x 0.5 mm
      30 x 0.5 mm
