BuraTAL-Flex 6070

BuraTAL-Flex 6070

BuraTAL-Flex 6070

Features

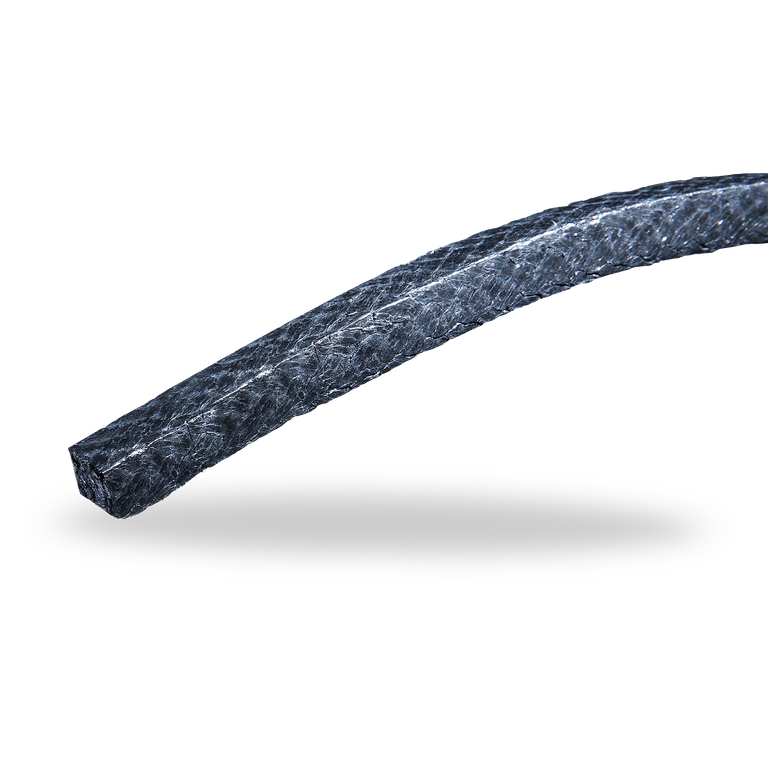

BuraTAL-Flex 6070 is a graphite-based, multi-layered high performance packing It is manufactured from high-purity expanded graphite yarn (>99 %) combined with a newly-developed high temperature impregnation. For long-term stable use in the high temperature range, the packing is additionally finished with a corrosion inhibitor. The multi-layer structure combines the benefits of maximum possible gap bridging due to the inner Inconel wire reinforcement with protection of the high-quality spindle surfaces in the valves. The packing can be installed without special end rings.

Advantages

  • Minimal leakage rates
  • Diameter-independent TA Luft packing solution
  • Ideal for use as a replacement packing
  • Maximum possible gap bridging

Operating range

Valves
Pressure: p = 450 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -200 °C … +450 °C
  • Steam: tmax = +650 °C

Chemical resistance:
pH = 1 ... 14
Resistant to hot water, steam, gases, oils, acids and alkalis. Not suitable for use in highly oxidizing acids such as sulfuric and nitric acid in higher concentrations.

Standards and approvals

  • ISO 15848
  • Firesafe to API 589
  • Leakage test to API 622
  • Leakage test to Chevron Texaco test standard

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
