Burajet SCH 8032/SCH

Burajet SCH 8032/SCH

Burajet SCH 8032/SCH

Features

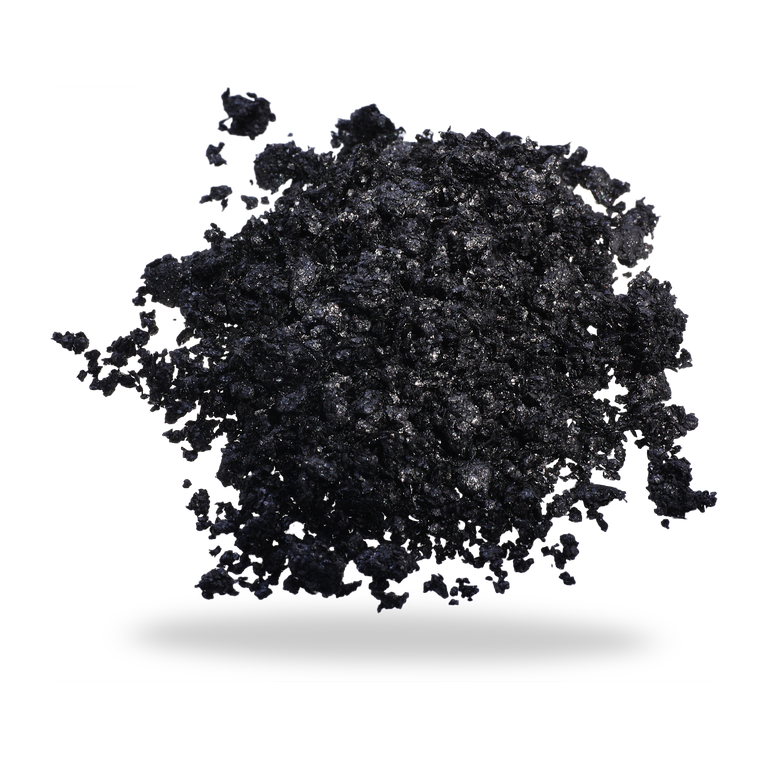

Burajet SCH 8032/SCH is a fiber injectable compound packing made from fiber-stabilized graphite. It is manufactured from natural graphite combined with binders which are applied to the graphite fibers using a special process. For some applications, it may be necessary to retain it between braided compression packings (e.g. Isartherm-Flex 6050 or Isartherm K-Flex 6051).

Advantages

  • Specially developed for high temperatures
  • Good heat conductivity
  • Can cover over minor shaft defects

Operating range

Valves
Pressure: p = 100 bar
Sliding velocity: vg = 2 m/s
Temperature
  • Continuous operation:
    t = -30 °C ... +450 °C
Chemical resistance: pH = 0 ... 14
Resistant to waste and exhaust gases

Forms of supply

  • 1kg container of loosely packed fiber injectable compound
  • Also available with Isartherm Flex 6051 or Isartherm Flex 6050 braided end rings
