Burajet SCA 8032/SCA

Burajet SCA 8032/SCA

Burajet SCA 8032/SCA

Features

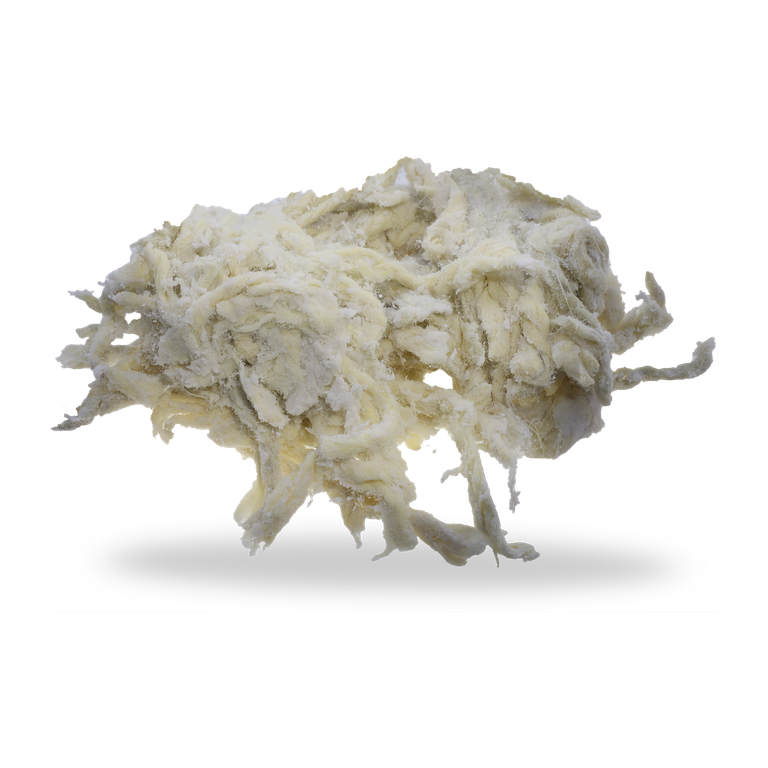

Burajet SCA 8032/SCA is a fiber injectable compound based on aramid/PTFE with a special lubricant. For some applications, it may be necessary to retain it between braided compression packings (e.g. Buramex SF 6335 or Araflon 6426).

Advantages

  • Specially developed for abrasive media
  • Very good running properties
  • Outstanding adaptability to the installation space
  • Optimal friction force reduction
  • Optimal leakage reduction

Operating range

Pumps
Pressure: p = 15 bar
Sliding velocity:
  • Braided end rings: vg = 10 m/s
  • Lip seals: vg = 4m/s
  • Valves
    Pressure: p = 70 bar
    Sliding velocity: vg = 2 m/s
    Mixers, agitators, kneaders, filters Pressure: p = 25 bar
    Sliding velocity: vg = 2 m/s

    Temperature
    • Continuous operation:
      t = -10 °C ... +260 °C
    Chemical resistance: pH = 2 ... 12
    Resistant to drinking water and food, sticky media such as bitumen and adhesives, abrasive media such as lime, sand, sugar and salt, and dyes, paints and turbine oils.

Forms of supply

  • 1kg container of loosely packed fiber injectable compound
  • Also available with Buramex SF 6335 or Araflon 6426 braided end rings or FKM or HPU header rings
