Features

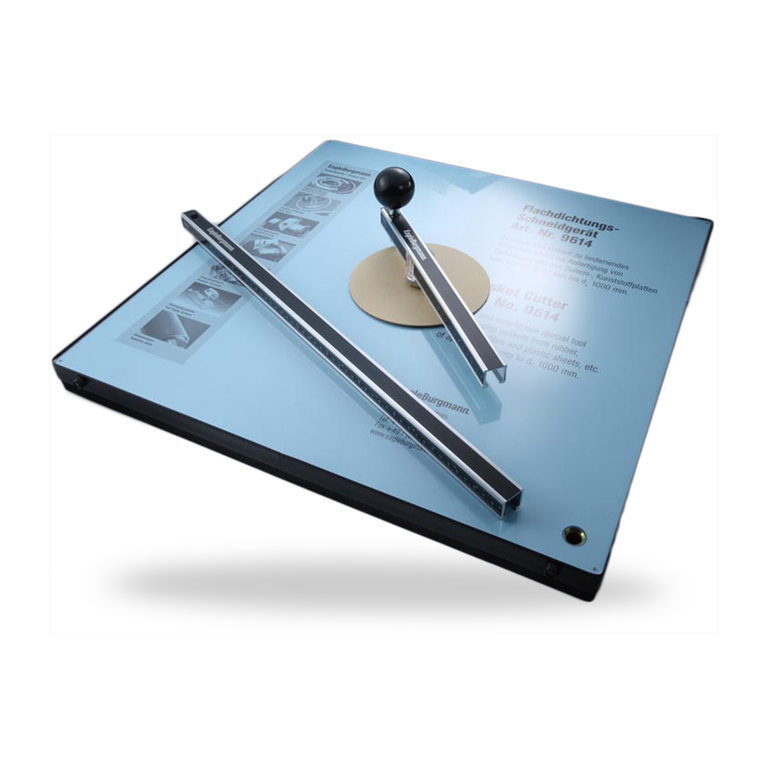

The gasket cutter 9614 is a manually operated cutting tool for on-site installation where there is no power supply. For cutting circular sealing rings.

Advantages

  • Convenient
  • Easy to use
  • Particularly suitable for preparing small quantities

Operating range

  • For preparing rubber, PTFE, graphite etc. sealing rings
  • Rings should ideally not have metal inserts
  • Gasket inner diameter:
    from approx. 30 mm
  • Gasket outer diameter:
    up to approx. 1,000 mm

Materials

The gasket cutter consists of:
  • Cutting plate
  • Short and long cutting arm with scale and adjustable stop
  • Operating handle with blade holder and hard metal blade
  • Center bushing
  • Hole punch
  • Cutting pad

Variants

9614/A Spare cutting knife
9614/B Plexiglas slider
9614/C Short bar
9614/D Central socket
9614/E PVC plate
9614/F Hole punching tool
9614/G Ground plate to punch on
9614/I Central bolt
9614/K Knife holder
9614/L Long bar
9614/SK Special cutting knife for gaskets made of Statotherm graphite without carrier and with stainless steel smooth metal carrier (not suitable for graphite with punched metal carrier).

Functional description

Use the hole punch and cutting pad provided to punch a centering hole in the gasket material. Then clamp it on the cutting plate. Set the desired diameter on the scale and then cut the circular sealing ring out of the gasket sheet.
