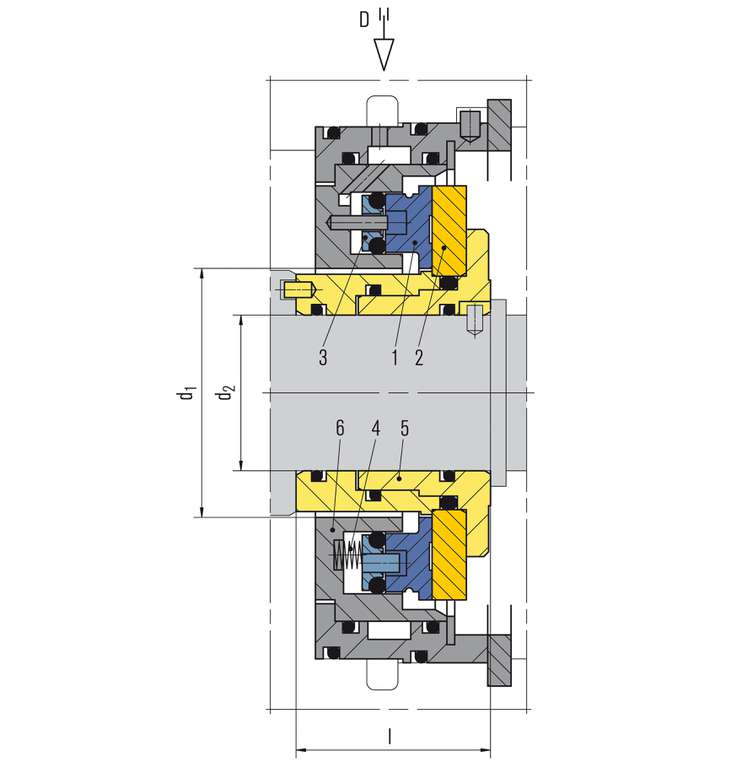

| Item | Description |
| 1 | Seal face, stationary |
| 2 | Seat, rotating |
| 3 | Thrust ring |
| 4 | Spring |
| 5 | Shaft sleeve and seat retainer |
| 6 | Housing (size matched to installation space) |
| D | Separation gas |

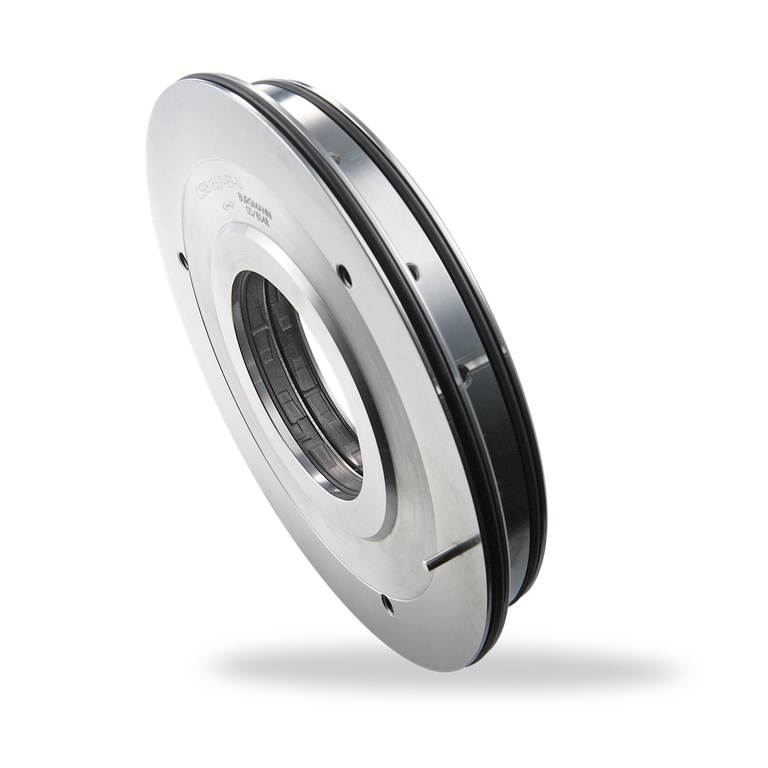

CobaSeal
Features
- Gas-lubricated
- Bi-directional
- Ready-to-fit cartridge unit
- Self cleaning 3D gas grooves
- Aerostatic and aerodynamic lift-off
Advantages
- Extremely low leakage
- Double arranged (co-axial) dry gas seal with just one pair of seal faces
- Insensitive to oil contamination due to its special design
- Wear-free, non-contacting operation in all conditions
- Insensitive to radial vibrations due to axial sealing gap
- Slow-roll or turning operation capable (static lift-off)
- No limits regarding dew point of separation gas (silicon carbide instead of carbon)
- Lower N2 consumption than any other system
- N2 can be switched off during standstill - the gap will close and still provide the best oil sealing performance
- Best in class oil sealing by extremely small sealing gap and sling effect of rotating ring
Operating range
27.2 ... 323.2 mm (1.07" ... 12.72")
Design pressure (mechanical integrity):
p = 0 … 70 bar (0 ... 1000 PSI)
Normal operating pressure:
p = 2.7 bar (39.16 PSI)
Temperature:
t = -20 °C … +200 °C (-4 °F … +392 °F)
Sliding velocity:
vg = 0 ... 150 m/s (0 ... 492 ft/s)
Dew point: No limitation
Materials
Seat: Ductile stainless steel*
Shaft sleeve: Stainless steel TC-coated
Secondary seals: FKM
Metal parts: 1.4006
* With special EagleBurgmann high performance iDLC (in situ Diamond-Like-Carbon) coating
Standards and approvals
- NACE
- API 692
Recommended applications
- Oil and gas industry
- Refining technology
- Petrochemical industry
- LNG
- CCUS
- Hydrogen
- Alternative fuels production
- Power generation
- Nitrogen
- Air
- Centrifugal compressors
- Blowers
Notes
Dimensions on request.
Similar products

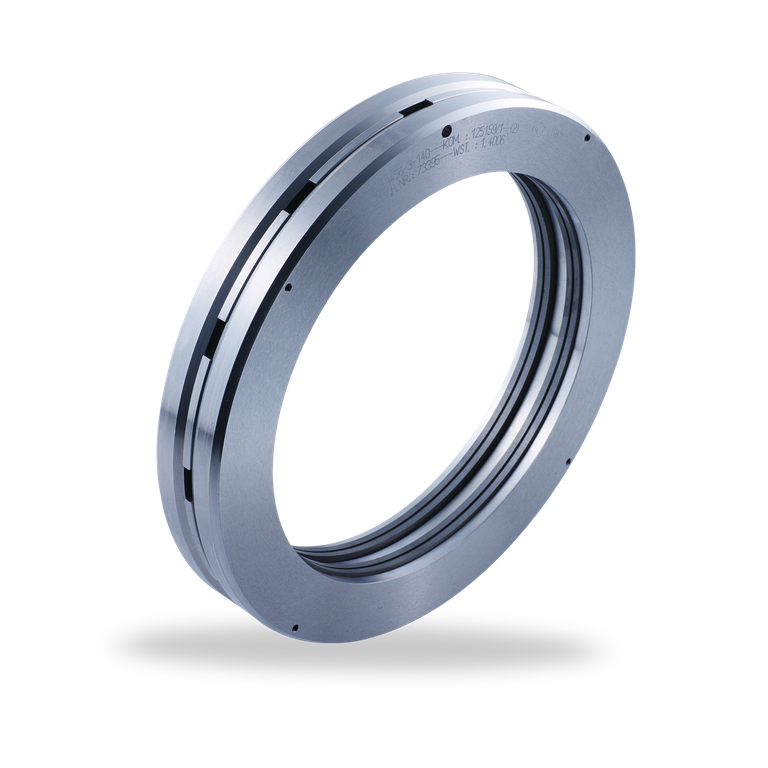

CSE
- Non-contacting bushing seal
- Gas-lubricated
- Bi-directional
- Ready-to-fit cartridge unit
- Equipped with Espey carbon rings type WKA400

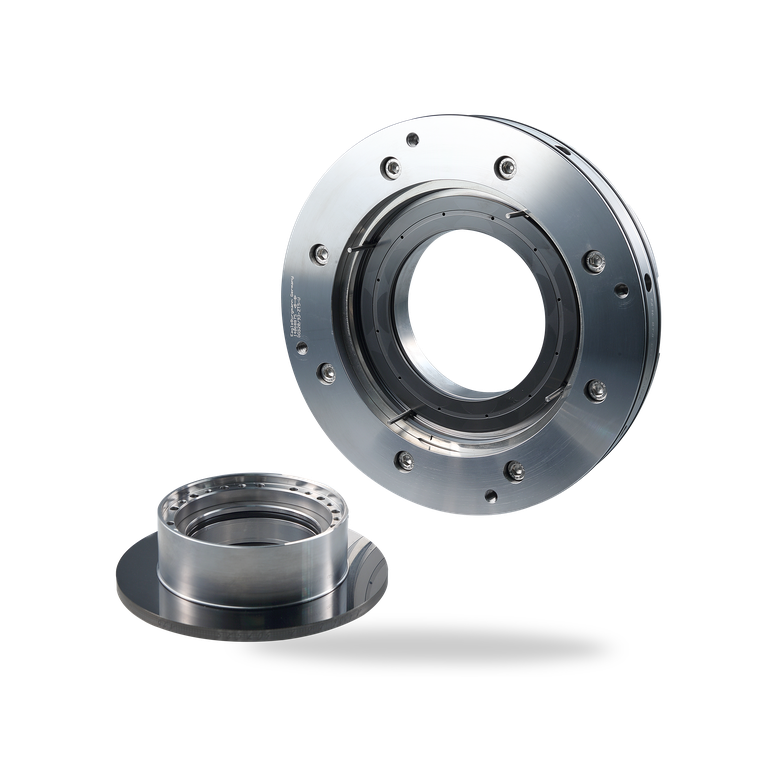

CSR
- Contacting bushing seal
- Gas-lubricated
- Bi-directional
- Ready-to-fit cartridge unit
