AGSZ
AGSZ

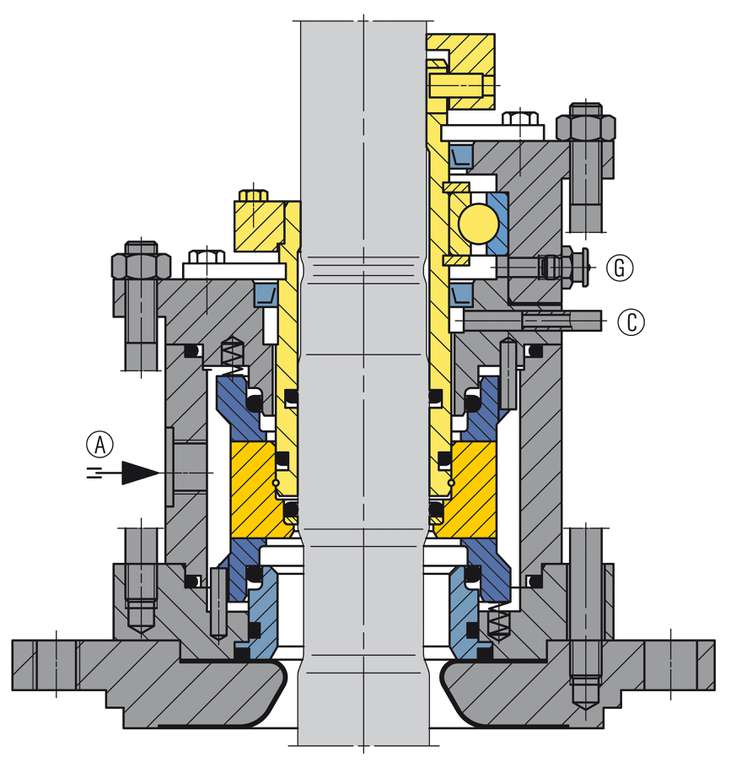

| Item | Description |
| 1 | Seal face, atmosphere side |
| 2 | Seal face, product side |
| 6, 7 | O-Ring |
| 11 | Seat |
| 17 | Flange |
| 22 | Clamping ring |

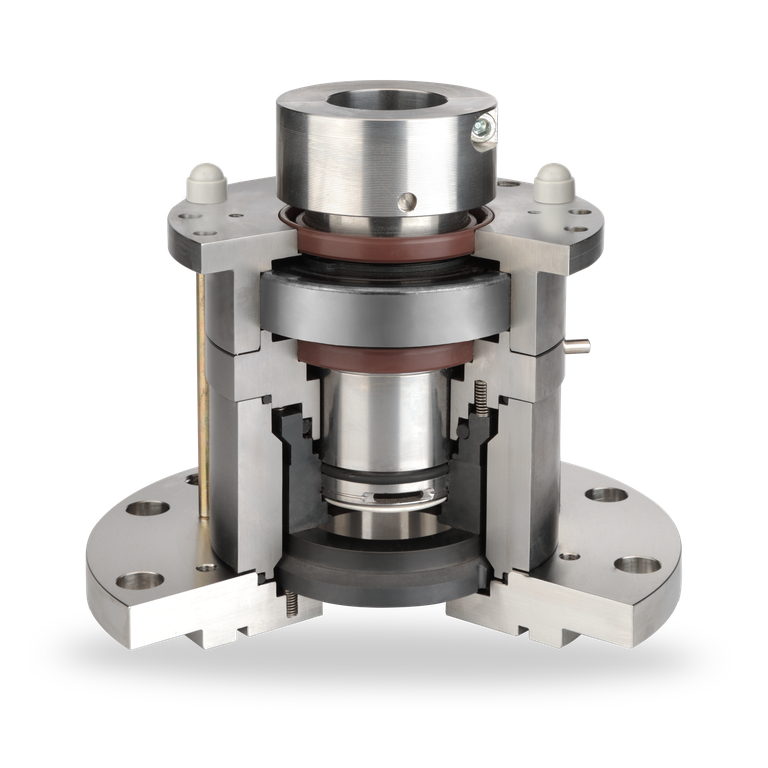

AGSZ
Features
- For top entry drives
- Double seal
- Balanced
- Independent of direction of rotation
- Gas-lubricated
- Cartridge unit
Advantages
- Ready-to-fit and factory-tested unit
- Central rotating seat
- Torque transmission by clamping ring for large axial movements
- Non-contacting operation
- No friction on the seal faces, no heat generated at the seal or in the medium
- ATEX certification on request
Materials
Seal faces and seats: Silicon carbide, FDA conform
Secondary seals and metallic parts acc. to application and customers' requirement.
Secondary seals and metallic parts acc. to application and customers' requirement.
Standards and approvals
- FDA
- ATEX
- DIN 28138 (mechanical seals for agitator shafts)
- DIN 28136 T2 (for steel vessels)
- DIN 28141 (flange connection for steel vessels)
- DIN 28154 (shaft end for steel vessels)
- DIN 28136 T3 (for glass-lined vessels)
- DIN 28137 T2 (flange connection for glass-lined vessels)
- DIN 28159 (shaft end for glass-lined vessels)
Recommended applications
- Chemical industry
- Food and beverage industry
- Pharmaceutical industry
- Gases and liquids
- Media which require high purity
- Agitators
- Reactors
Notes
Options:
- Cooling resp. heating flange
- Flush
- Hygienic flange
Recommended piping plans
Gas supply by EagleBurgmann
GSS4015/A400-D0,
GSS4016/A250-D1 or GSS4016/A350-D1.
Note: To assure a sufficient supply of the mechanical seal, pressure at entry of the supply system must be min. 3 bar (44 PSI) above max. barrier pressure always.
Product link:
EagleBurgmann GSS
GSS4015/A400-D0,
GSS4016/A250-D1 or GSS4016/A350-D1.
Note: To assure a sufficient supply of the mechanical seal, pressure at entry of the supply system must be min. 3 bar (44 PSI) above max. barrier pressure always.
Product link:
EagleBurgmann GSS
Product variants
AGSZ481K(L)-D
Double seal (with integrated bearing) for steel vessels to DIN 28136, connection flange to DIN 28141 and shaft ends to DIN 28154.
Double seal (with integrated bearing) for steel vessels to DIN 28136, connection flange to DIN 28141 and shaft ends to DIN 28154.
AGSZ461K(L)-D
Double seal (with integrated bearing) for glass-lined vessels to DIN 28136, connection flange to DIN 28137 and shaft ends to DIN 28159.
Double seal (with integrated bearing) for glass-lined vessels to DIN 28136, connection flange to DIN 28137 and shaft ends to DIN 28159.
AGSZ451K(L)-D
Version with special connection dimensions or unstepped shafts. For steel vessels.
Version with special connection dimensions or unstepped shafts. For steel vessels.
AGSZ491K(L)-D
Variant with special connection dimensions for glass-lined vessels.
Variant with special connection dimensions for glass-lined vessels.
AGSZ461K(L)-D

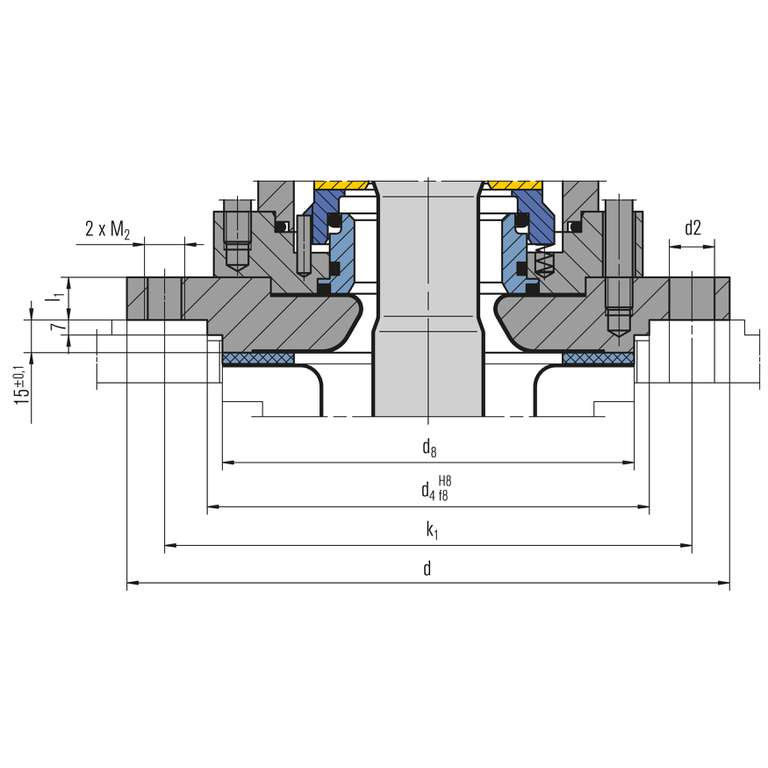

Flange connection acc. to DIN 28137 T2 for nominal diameters 40 ... 100.
AGSZ461K(L)-D
Flange connection acc. to DIN 28137 T2 for nominal diameters 125 ... 161.
Similar products
AGSR
- For top and side entry drives
- Double seal
- Balanced
- Stationary springs on product side
- Independent of direction of rotation
- Gas-lubricated
- Cartridge unit
